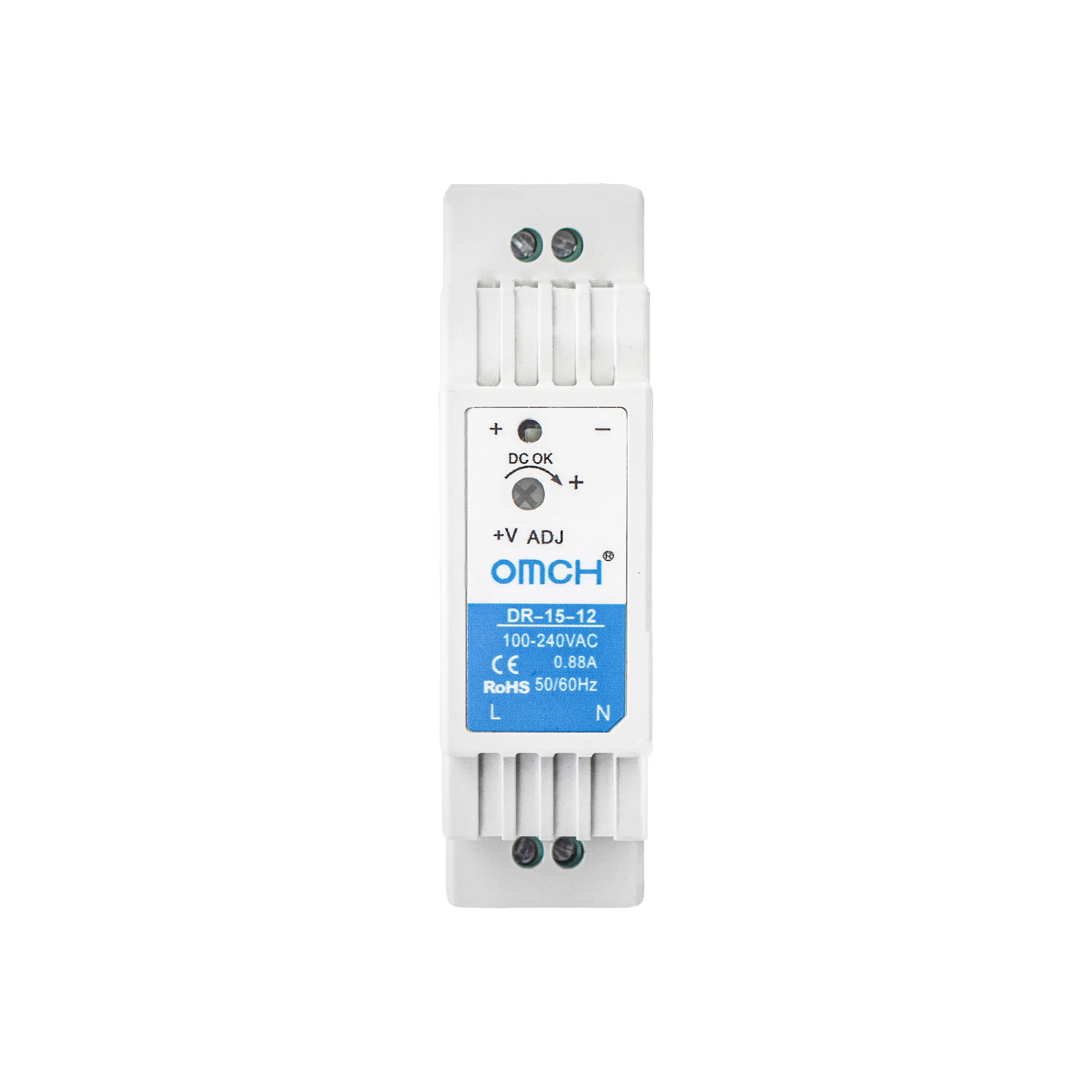

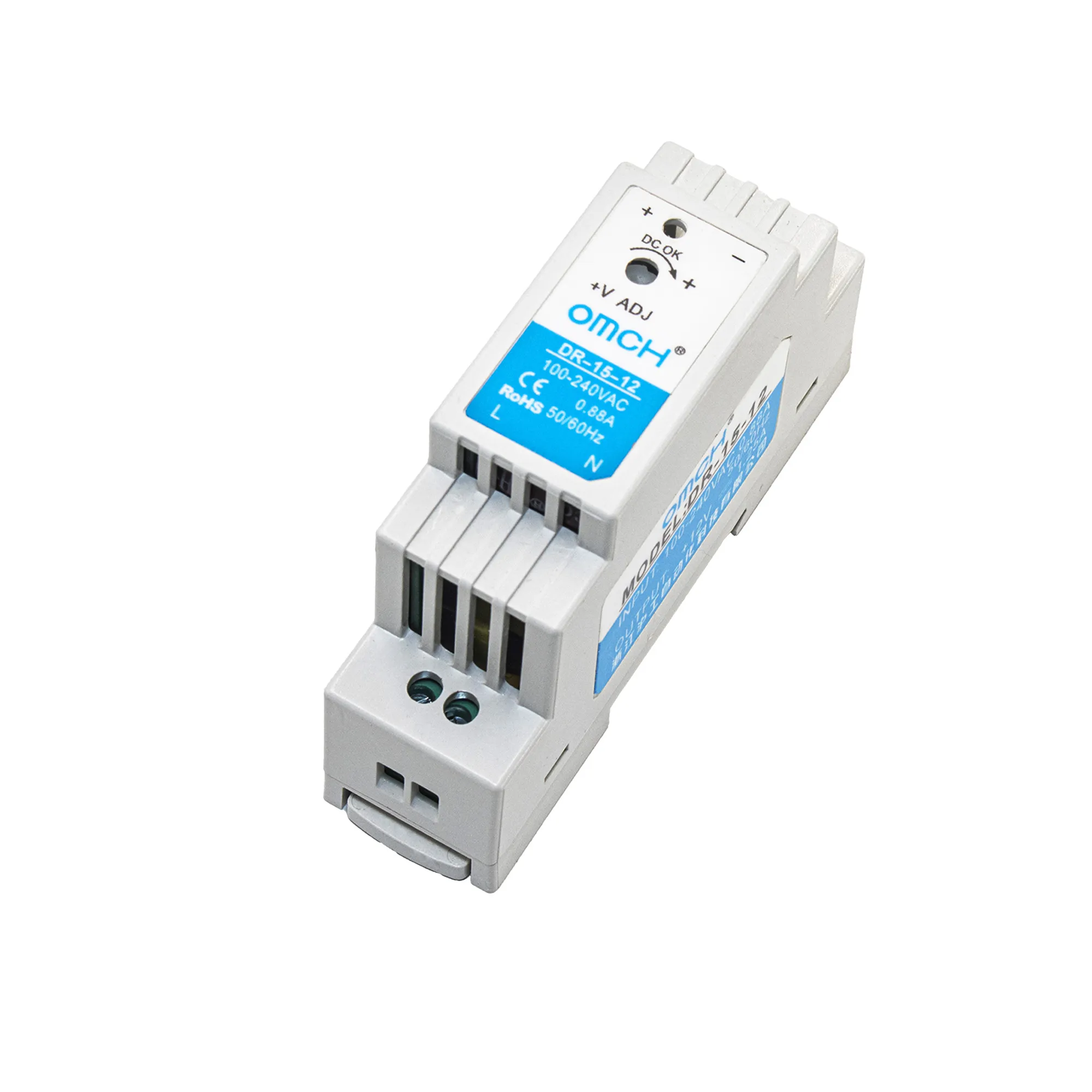

DR-15

5V/12V/24V

Description

Type ：DR DIN-Rail Switching Power Supply
Output voltage: 5V/12V/24V
Input voltage ：85-264VAC/47-63VAC 120-370VDC
Output power (W): 15W
Function: Overload protection; short circuit protection
(If there are special requirements, can be customized)

Product Specification

DR-15W 5V/12V/24V DIN-Rail LED SMPS AC to DC Switching Power Supply
Attributes		Tehnical Index
Mode		DR-15-5	DR-15-12	DR-15-24
Output	DC Voltage	5V	12V	24V
	Current Range	0~3A	0~1.25A	0~0.63A
	Rated power	15W
	Ripple Coefficient	80mVp-p	120mVp-p	150mVp-p
Input	Voltage Range	100~240VAC 50Hz~60Hz (140VDC~340VDC)
	Impulse Current	Cold Cranking Current 25A/115V 45A/230V
Protect	Overload Protection	115~150% Hiccup Mode; Cut-off Output; Automatic Recovery
Environmental Science	Operating Temperature	-10℃~+60℃
	Operating Humidity	10%~80%RH
Safety Regulations	Withstand Voltage	Inter-input-output:1.5KVAC
Standard	Size	259356mm
	Weight/Packaging	0.08KG/140PCS/12KG
