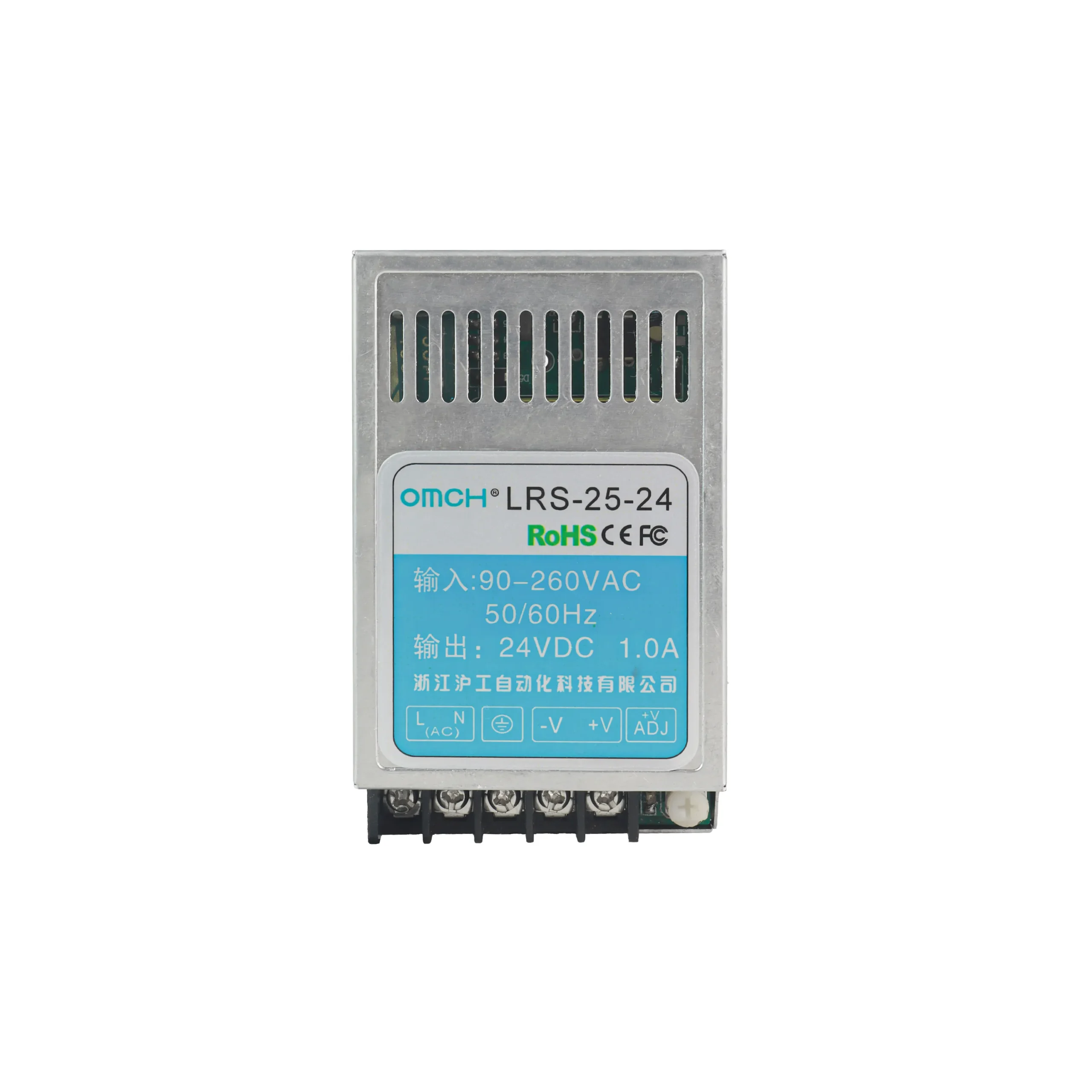

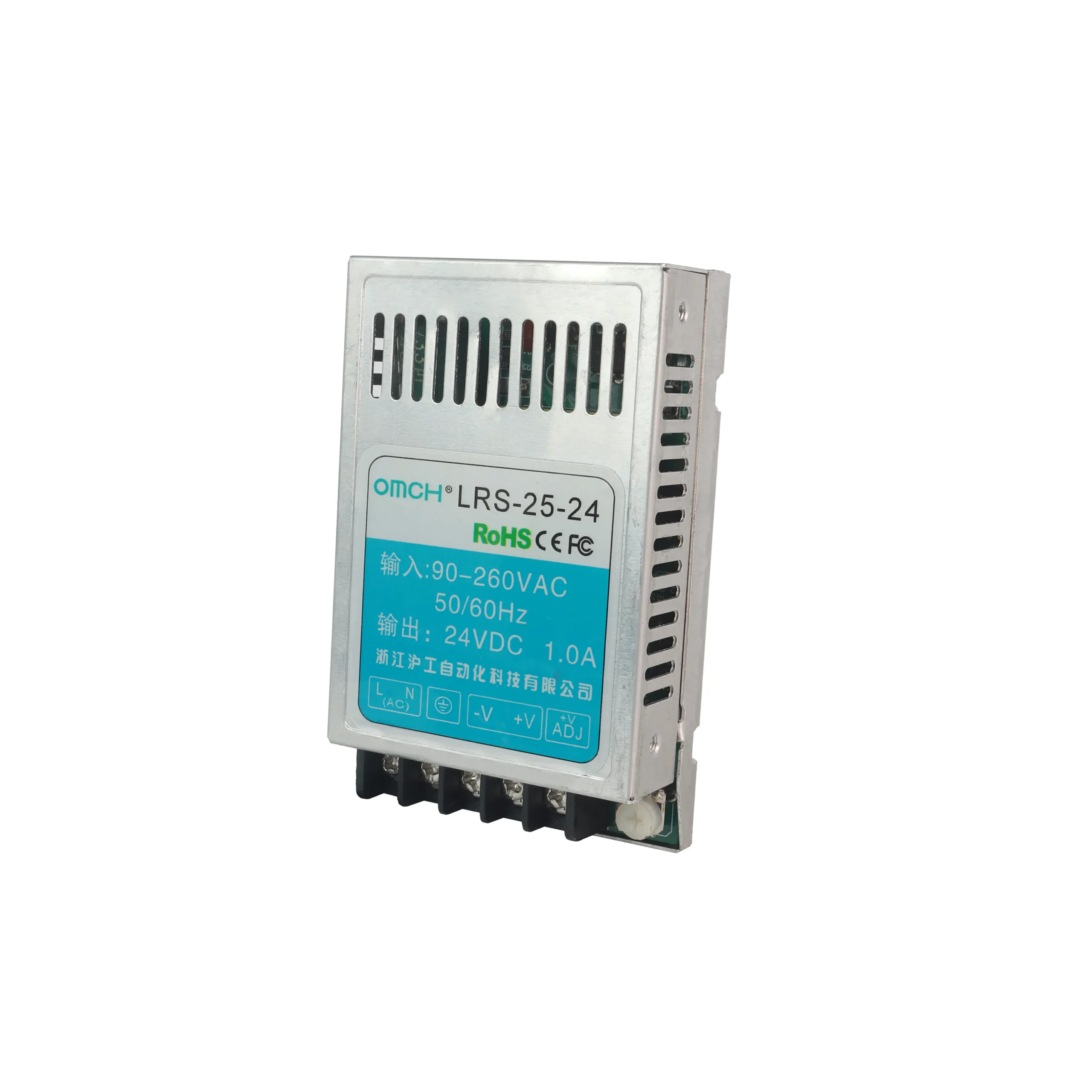

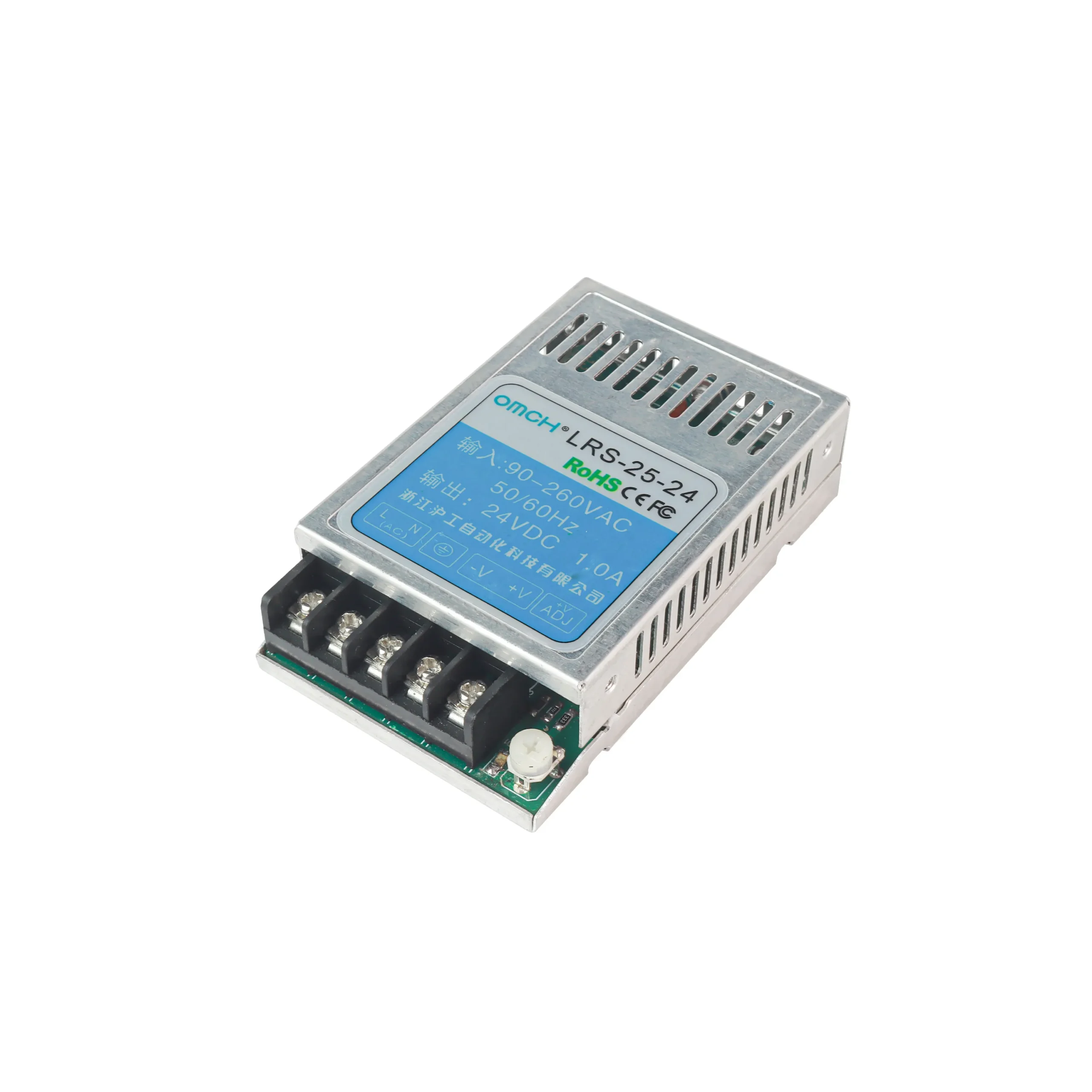

LRS-25

5V/12V/24V

Description

Type ：LRS Ultra-thin Switching Power Supply
Output power (W): 25W
Output voltage: 5V/12V/24V
Function : Overload protection;Short circuit protection;
(If there are special requirements, can be customized)

Product Specification

LRS-25W 5V/12V/24V DIN-Rail LED SMPS AC to DC Switching Power Supply
Attributes		Tehnical Index
Mode		LRS-25-5	LRS-25-12	LRS-25-24
Output	DC Voltage	5V	12V	24V
	Current Range	5A	2.1A	1.1A
	Rated power	25W
	Ripple Coefficient	80mVp-p	120mVp-p	150mVp-p
Input	Voltage Range	100~240VAC 50Hz~60Hz (140VDC~340VDC)
Protect	Overload Protection	115~150% Hiccup Mode; Cut-off Output, Automatic Recovery
Environmental Science	Operating Temperature	-10℃~+60℃
	Operating Humidity	20%~90%RH
Safety Regulations	Withstand Voltage	Inter-input-output:1.5KVAC Iutput and Case:1.5KVAC Onput and Case:0.6KVAC
Standard	Size	995826mm
	Weight	0.1KG
