Type ：LRS Ultra-thin Switching Power Supply
Output power (W): 400W
Output voltage: 5V/12V/24V/36V/48V
Function : Overload protection;Short circuit protection;
(If there are special requirements, can be customized)

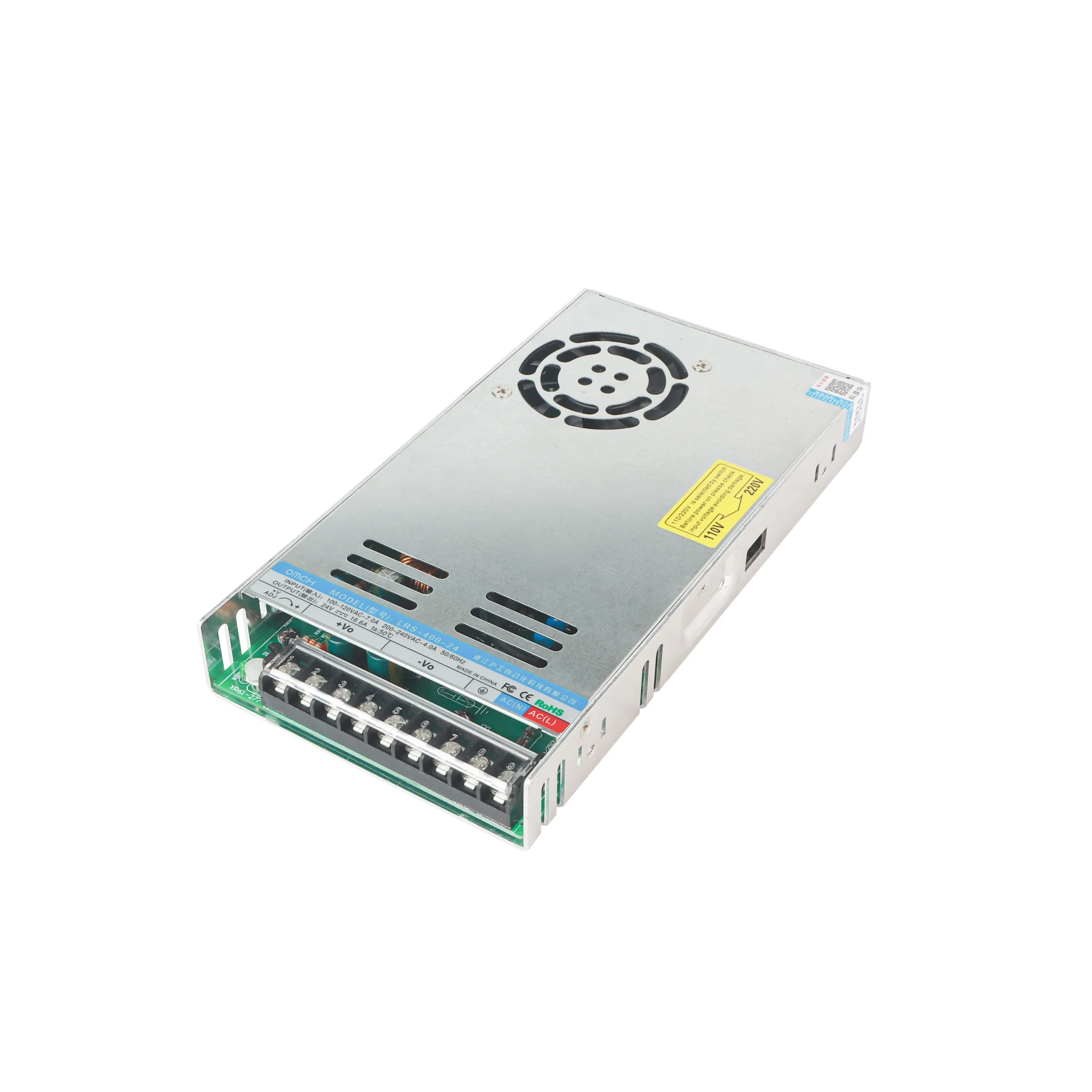

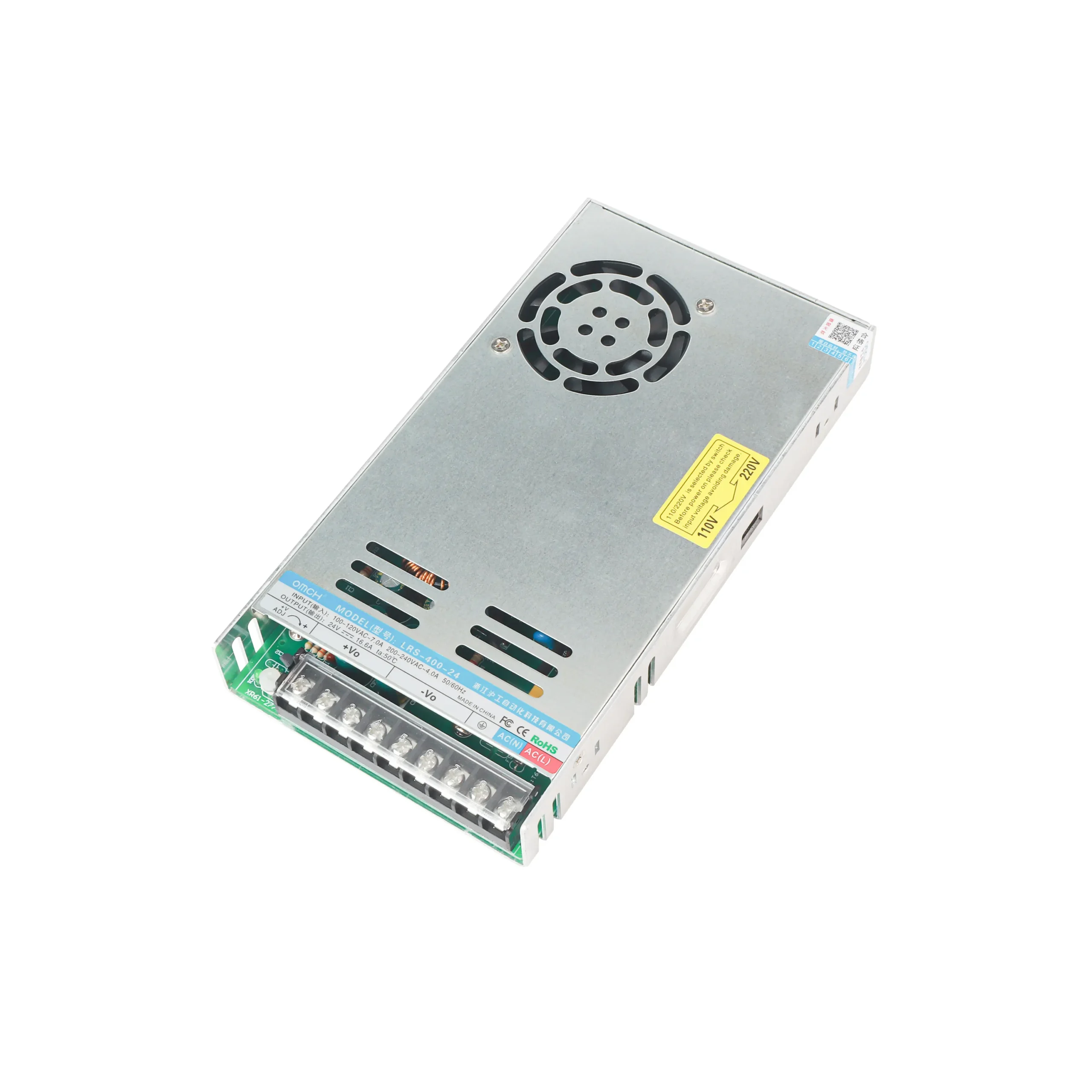

| LRS-400W 5V/12V/24V/36V/48V DIN-Rail LED SMPS AC to DC Switching Power Supply
|
||||||
| Attributes | Tehnical Index | |||||
| Mode | LRS-250-5 | LRS-250-12 | LRS-250-24 | LRS-250-36 | LRS-250-48 | |
| Output | DC Voltage | 5V | 12V | 24V | 36V | 48V |
| Current Range | 80A | 33A | 16.6A | 11A | 8.3A | |
| Rated power | 400W | |||||
| Ripple Coefficient | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | |
| Input | Voltage Range | 100~120VAC/200~240VAC 50Hz~60Hz (255~340VDC) | ||||
| Protect | Overload Protection | 115~150% Hiccup Mode; Cut-off Output, Automatic Recovery | ||||
| Overtemperature Protection | ≥85℃+10℃ Cut Off the Output, Automatic Recovery | |||||
| Environmental Science | Operating Temperature | -10℃~+60℃ | ||||
| Operating Humidity | 20%~90%RH | |||||
| Safety Regulations | Withstand Voltage | Inter-input-output:1.5KVAC
Iutput and Case:1.5KVAC Onput and Case:0.6KVAC |
||||
| Standard | Size | 215*115*30mm | ||||
| Weight/Packaging | 0.66KG/20PCS/13.5KG | |||||
