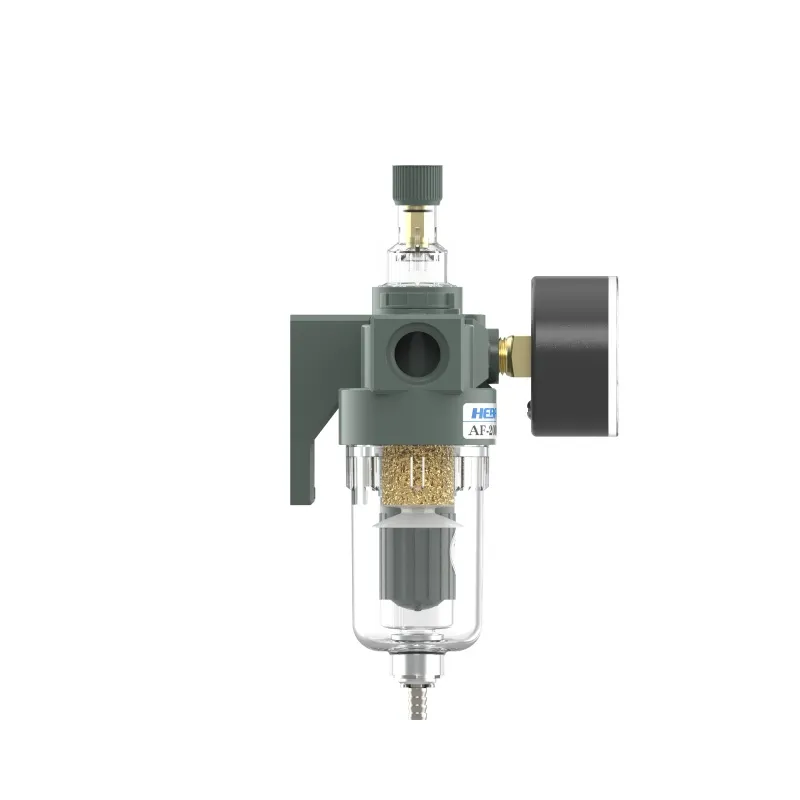

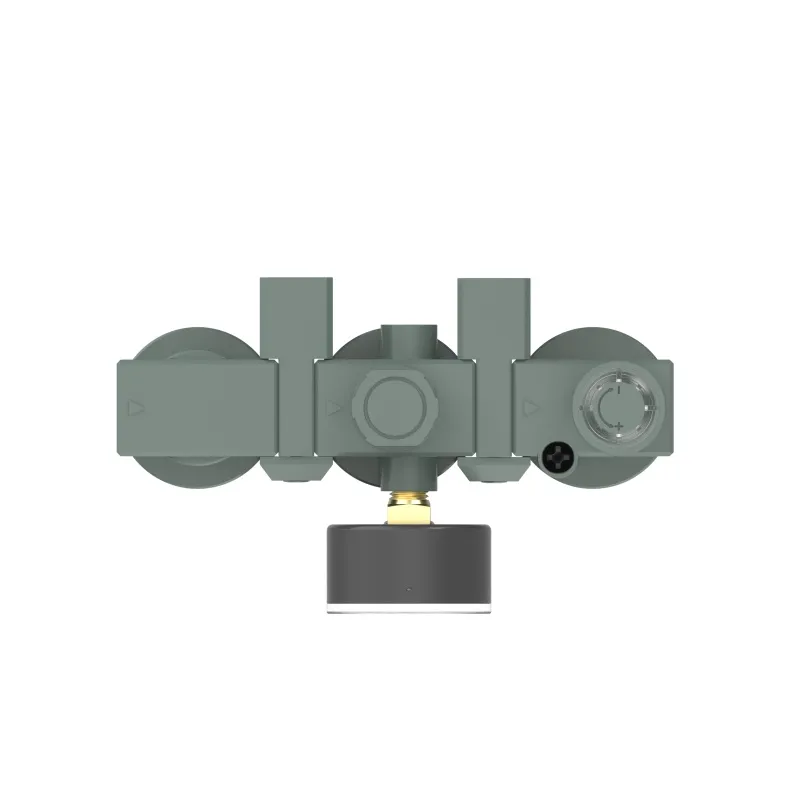

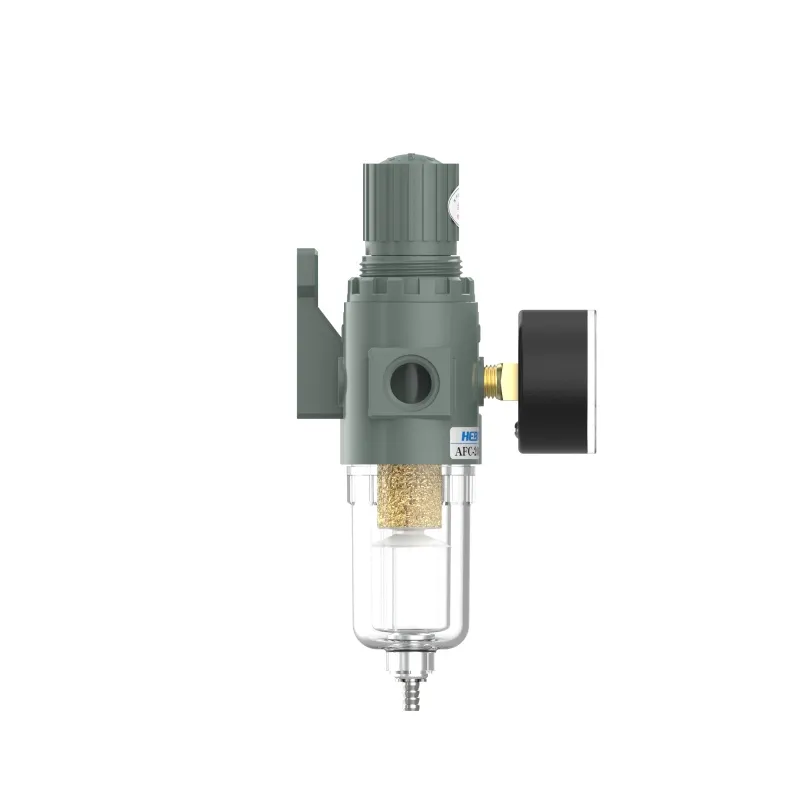

Model:AC2000/Grey
Fluid:Air
Port size:1/4”
Filtering grade:40μm or 25μm
Pressure range:Semi-auto and automatic drain:0.15~0.9MPa(20-130Psi)
Max.pressure:1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range:-5~70℃(unfreeze)
Capacity of drain bowl:15CC
Capacity of oil bowl:25CC
Recommended lubricant:Turbine 1 oil ISOVG32

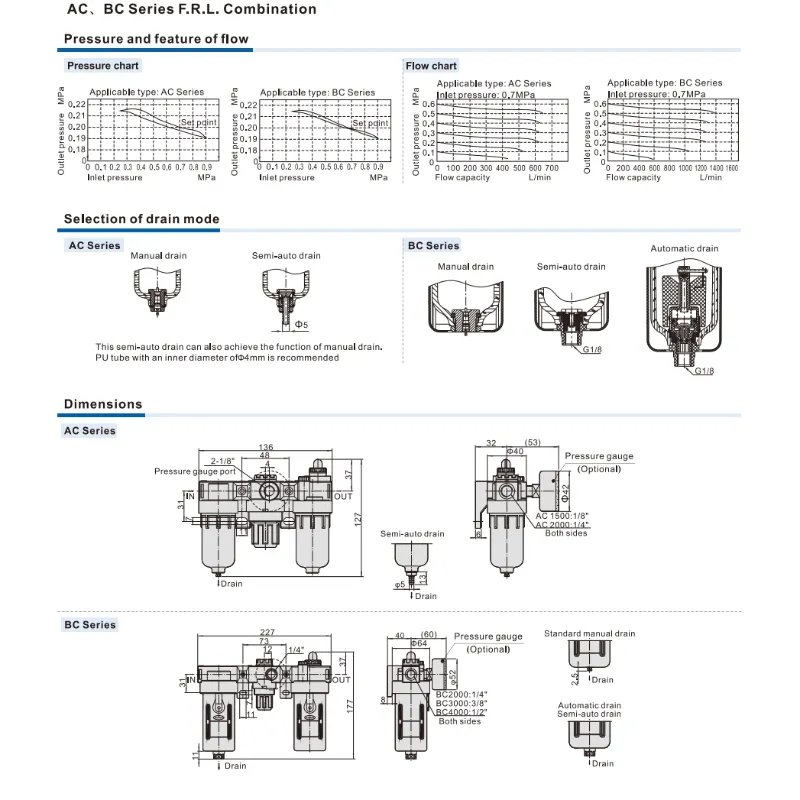

Specification

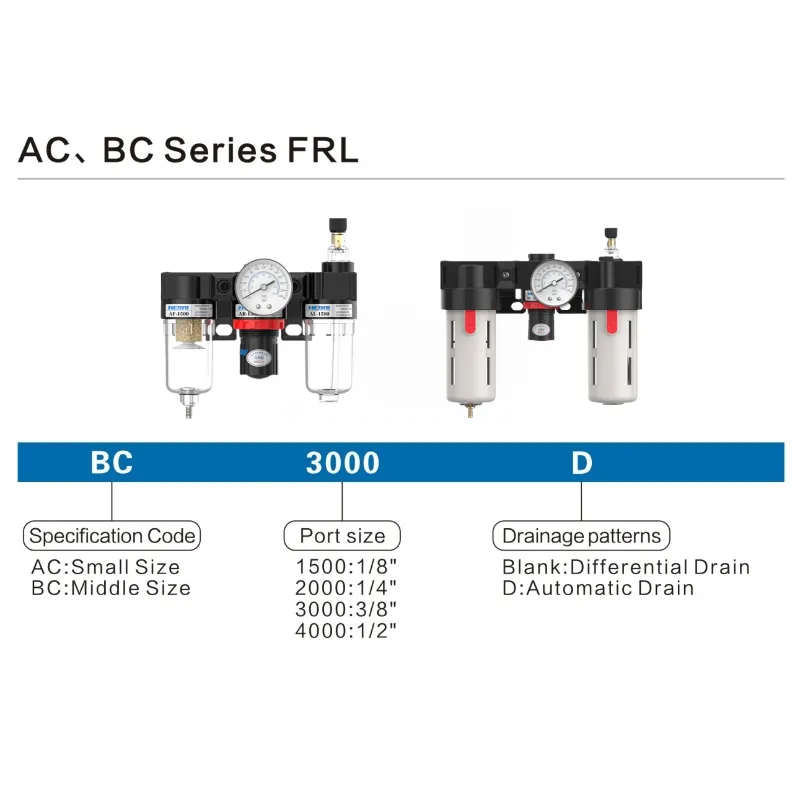

| Model | AC2000 | BC2000 | BC3000 | BC4000 | |
| Fluid | Air | ||||
| Port size [Note1] | 1/4 | 1/4” | 3/8″ | 1/2″ | |
| Filtering grade | 40μm or 25μm | ||||
| Pressure range | Semi-auto and automatic drain:0.15~0.9MPa(20-130Psi) Manualdrain:0.05~0.9MPa(7~130Psi) | ||||
| Max.pressure | 1.0MPa(145Psi) | ||||
| Proof pressure | 1.5MPa(215Psi) | ||||
| Temperature range | -5~70℃(unfreeze) | ||||
| Capacity of drain bowl | 15CC | 60CC | |||
| Capacity of oil bowl | 25CC | 90CC | |||
| Recommended lubricant | Turbine 1 oil ISOVG32 | ||||
|
Constitute |
Filter | AF2000 | BF2000 | BF3000 | BF4000 |
| Regulator | AR2000 | BR2000 | BR3000 | BR4000 | |
| Lubricator | AL2000 | BL2000 | BL3000 | BL4000 | |
Model:4V210
Fluid:Air(to be filtered by 40μm filter element)
Acting:Internal pilot or external pilot
Valve type:5 port 2 position
Operating pressure:0.15~0.8MPa(21~114psi)
Proof pressure:1.2MPa(175psi)
Temperature:-20~70℃
Material of body:Aluminum alloy
Model:4V210/4V220/4V230
Fluid:Air(to be filtered by 40μm filter element)
Acting:Internal pilot or external pilot
Orifice size(Cv):4V210-08,4V220-08:17.0mm²(Cv=1.0)
4V230C-08:13.6mm²(Cv=0.8)
Operating pressure:0.15~0.8MPa(21~114psi)
Proof pressure:1.2MPa(175psi)
Temperature:-5~55℃
Material of body:Aluminum alloy
Lubrication:Not required
Model：3V210-06/3V220-06/3V210-08/3V220-08
Valve type:3 port 2 position
Fluid：Air(to be filtered by 40μm filter element)
Acting:Internal pilot orexternal pilot
Orifice size(Cv):3V210-08,3V220-08:17.0mm²(Cv=1.0)
Lubrication:Not required
Operating pressure:0.15~0.8MPa(21~114psi)
Proof pressure:1.2MPa(175psi)
Temperature:-5-55℃
Material of body:Aluminum alloy
Model：2V025-06/2V025-08/2V130-10/2V130-15/2V250-20/2V250-25
Fluid：Air.Water.Oil
Acting：Direct acting、Internally piloted acting
Initial state：Normally closed
Viscosity limit：Under 20CST
Proof pressure：1.5MPa(215psi)
Activating time：0.05 sec and below
Model：RE Series One-Way Throttle Valve
Port size:1/8″/1/4″/3/8″/1/2″
Fluid:Air(to be filtered by 40 μm filter element)
Pressure range:0.05~0.95MPa(7~135psi)
Proof pressure:1.5MPa(215psi)
Temperature:-5~55℃
Material of body:Aluminum alloy
Model：2W NC Solenoid Water Valve
Thread：1/8，1/4，3/8，1/2，3/4，1
Name：DN6/8/10/15/20/25
Model：HFR
Bore Size（mm）：12mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, 100mm
Acting type：Double acting
Fluid：Air(to be filtered by 40μm filter element)
Operating pressure：Φ10:0.2~0.7MPa(29~100psi)(2.0~7.0bar)
Others:0.15~0.7MPa(22~100psi)(1.5~7.0bar)
Temperature ℃：-20~70
Lubrication：Cylinder:Not required;Gripper jaws:Lubricate grease
Cushion type：Bumper
Max.frequency：60(c.p.m)
Repeatability：±0.2mm
Open or close angle：Close:-2°~-5° Open:180°±2°
Port size：M5×0.8
Model：AD402
Proof pressure：1.5 MPa
Max.operating pressure：1.0 MPa
Operating pressure range ：0.1 to 1.0 MPa
Ambient and fluid temperature：-5 to 60℃(No freezing)
Port size：1/2
Drain port size：3/8
Model：NDC
Bore size(mm)： 32/40/50/63/80/100/125
Acting type：Double acting
Fluid：Air(to be filtered by 40μm filter element)
Operating pressure：0.15~1.0MPa(22~145psi)(1.5~10.0bar)
Proof pressure：1.5MPa(215psi)(15bar)
Temperature ℃：-20-70
Cushion type：Variable cushion
Model:MHZ2-6/MHZ2-10/MHZ2-16/MHZ2-20/MHZ2-25/MHZ2-32/MHZ2-40
Bore size (mm):6/10/16/20/25/32/40
Ambient and fluid temperature:-10 to 60℃
Repeatability:∅6 to ∅25:±0.01 mm
∅32,∅40:±0.02 mm
Max.operating frequency:∅6 to ∅25:180 c.p.m.
∅32,∅40:60 c.p.m.
Lubrication:Not required
Action:Double acting/Single acting
Auto switch(Option)Noco):Solid state auto switch (3-wire,2-wire)
MODEL:MHC2-10/MHC2-16/MHC2-20/MHC2-25
Bore size (mm):10/16/20/25
Amblent and fluid temperature:-10 to 60℃
Max operating frequency:180 c.p.m
Lubrication:Not required
Action:Double acting,Single acting
Auto switch (Option)Nole):Auto switch (Option)Nole)
Model：MI
Bore size(mm):8/10/12/16/20/25/32/40
Fluid：Air(to be filtered by 40μm filter element)
Operating pressure：Double acting：0.15-1.0MPa(22-145psí)(1.5-10.0bar)
Single acting：0.2-1.0MPa(28-145psi)(2.0-10.0bar)
Proof pressure：1.5MPa(215psi)(15bar)
Model:TR6/TR10/TR16/TR20/TR25/TR32
Bore size(mm)：6/10/16/20/25/32
Acting type:Double acting
Fluid:Air(to be filtered by 40μm filter element)
Operating pressure：0.2-1.0MPa(29~145psi) 0.15-1.0MPa(22-145psi)
Proof pressure：1.5MPa(215psi)
Temperature ℃：-20~70
Speed range mm/s：30~500
Adjustable stroke mm：-5-0
Model： TN10 TN16 TN20 TN25 TN32
Bore size(mm)：10、16、20、25、32
Acting typex：Double acting
Fluid：Air(to be filtered by 40μm filter element)
Proof pressure：1.5MPa(215psi)
Temperature ℃：-20-70
Speed range mm/s：30-500
Adjustable stroke mm：-5-0
Model:CXSW
Bore size(mm):6/10/15/20/25/32
Fluid:Air(Non-lube)
Proof pressure:1.05 MPa
Maximum operating pressure:0.7 MPa
Ambientand fluid temperature：-10 to 60℃(No freezing)
Cushion：Rubber bumper on both ends
Stroke adjustable range：0 to-5mm compared to the standard stroke
Model:4R110-06/4R210-06/4R210-08/4R310-08/4R310-10
service substance:Air (filtered through a 40μm or larger filter)
manner of execution:Manual direct-acting type
takeover caliber:1/8/1/4/3/8
positional number:Five Mouths Two Positions
Lubrication:non-essential
Pressure range:0~0.8MPa(0~114psi)
pressure bearing capacity：1.5MPa(215psi)
working temperature ℃：-5~55
Material of the body：aluminum alloy
Model:210-06/230-06/210-08/230-08/310-08/330-08/310-10/330-10
Fluid:Air(to be filtered by 40μm filter element)
Operating:Manual control direct acting type)
Lubrication:Not required
Pressure range:0~1.0MPa(0~145psi)
Proof pressure:1.5MPa(215psi)
Temperature:-5~55℃
Material of body:Aluminum alloy
Model:4A210-06/4A220-06/4A230C-06/4A230E-06/4A230P-06/4A210-08/4A220-08/4A230C-08/4A230E-08/4A230P-08
Fluid：Air(to be filtered by 40μm filter element)
Acting：Exterior control
Port size ：In=Out=Exhaust=1/8″、In=Out=1/4”Exhaust=1/8″
Operating pressur：0.15~0.8MPa(21~114psi)
Proof pressure：1.2MPa(175psi)
Temperature：-5-55℃
Material of body：Aluminum alloy
Lubrication：Not required
Model:3A210-06/3A220-06/3A210-08/3A220-08
Fluid:Air(to be filtered by 40μm filter element)
Acting:Exterior control
Port size :In=Out=1/8”/In=Out=1/4″
Orifice size(Cv):3A210-08,3A220-08:17.0mm²(Cv=1.0)
Valve type:3 port 2 position
Lubrication :Not required
Operating pressure:0.15~0.8MPa(21~114psi)
Proof pressure:1.2MPa(175psi)
Temperature:-5-55℃
Material of body:Aluminum alloy
Model:CDM2B
Bore size(mm):20/25/32/40
Action:Double acting,Single rod
Fluid:Air
Proof pressure：1.5 MPa
Maximum operating pressure：1.0 MPa
Minimum operating pressure：0.05 MPa
Ambient and fluid temperature：Without auto switch:-10℃ to 70℃ (No freezing)
With auto switch:-10℃ to 60℃ (No freezing)
Lubrication：Not required (Non-lube)
Stroke length tolerance：+2⁴mm
Model:CDJ2B
Bore size[mm]:6/10/16
Action:Double acting,Single rod
Fluid:Air
Proof pressure:1 MPa
Maximum operating pressure:0.7 MPa
Lubrication:Not required(Non-lube)
Model：CDG1B2
Bore size [mm]：20/25/32/40/50/63/80/100
Action：Double acting,Single rod
Lubricant：Not required(Non-lube)
Fluid：Air
Proof pressure：1.5 MPa
Maximum operating pressure：1.0 MPa
Minimum operating pressure：0.05 MPa
Ambient and fluid temperatures：Without auto switch:-10℃ to 70℃(No freezing)
With auto switch:-10℃ to 60℃
Stroke length tolerance⁹1：Up to 1000 *6mm,Up to 1500+1mm
Cushion：Rubber bumper,Air cushion
Model:CY1S
Bore size(mm):6/10/15/20/32/40
Fluid:Air
Proof pressure:1.05 MPa
Maximum operating pressure:0.7 MPa
Minimum operating pressure:0.18 MPa
Ambient and fluid temperature:-10 to 60℃(No freezing)
Piston speed⁰:50 to 400 mm/s
Cushion:Rubber bumper/Shock absober
Lubrication:Non-lube
Stroke length tolerance(mm):0 to 250 st:1°,251 to 1000 st:1,1001st or longer:+1.8
Model：MG
Bore size(mm):20/25/32/40/50/63
Acting type：MSG/MTG：Single acting
MG/MGD：Double acting
MGC/MGCD：Double acting with cushion
Fluid：Air(to be filtered by 40μm filter element)
Double acting：0.15-1.0MPa(22-145psi)(1.5-10.0bar)
Single acting：0.2-1.0MPa(28-145psi)(2.0-10.0bar)
Proof pressure：1.5MPa(215psi)(15bar)
Temperature ℃：-20~70
Model:AC3000-03/Gold
Proof pressure:1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm)
Ambient and fluid temperature:5-60℃
Nominal filtration rating:5μm
It is recommended to use oil:Turbine 1 oil ISOVG32
Bowl material:Polycarbonate
Bowl guard:AC2010 (None) AC3010~5010 (Included)
Turbine 1 oil ISOVG32
Set pressure range:AC2010-5010:0.05-0.85MPa(0.5-8.5kgf/cm²)
Construction:Overflow type
Model：AC2000-02/Gold
Proof pressure：1.5MPa(15kgf/cm²)
Max. operation pressure：1.0MPa(10kgf/cm)
Ambient and fluid temperature：5-60℃
Nominal filtration rating：25μm
It is recommended to use oil：Turbine 1 oil ISOVG32
Bowl material： Polycarbonate
Bowl guard：AC2010 (None) AC3010~5010 (Included)
Set pressure range：AC2010-5010:0.05-0.85MPa(0.5-8.5kgf/cm²)
Construction：Overflow type
Model:BC2000/Metal Housing
Fluid:Air
Port size:1/4”
Filtering grade:40μm or 25μm
Pressure range:Semi-auto and automatic drain:0.15~0.9MPa(20-130Psi) Manualdrain:0.05~0.9MPa(7~130Psi)
Max.pressure:1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range:-5~70℃(unfreeze)
Capacity of drain bowl:60CC
Capacity of oil bowl:90CC
Constitute:BF2000+BR2000+BL2000
Model:AC2000/Grey
Fluid:Air
Port size:1/4”
Filtering grade:40μm or 25μm
Pressure range:Semi-auto and automatic drain:0.15~0.9MPa(20-130Psi)
Max.pressure:1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range:-5~70℃(unfreeze)
Capacity of drain bowl:15CC
Capacity of oil bowl:25CC
Recommended lubricant:Turbine 1 oil ISOVG32
Model：BC2000/Black/Plastic Cover
Fluid：Air
Port size：1/4”
Filtering grade：40μm or 25μm
Pressure range：Semi-auto and automatic drain:0.15~0.9MPa(20-130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of drain bowl：60CC
Capacity of oil bowl：90CC
Recommended lubricant：Turbine 1 oil ISOVG32
Constitute：BF2000+BR2000+BL2000
Model：AC2000/Black/Fiber Copper
Fluid：Air
Port size：1/4
Filtering grade：40μm or 25μm
Pressure range：Semi-auto and automatic drain:0.15~0.9MPa(20-130Psi) Manualdrain:0.05~0.9MPa(7~130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of drain bowl：15CC
Capacity of oil bowl：25CC
Recommended lubricant：Turbine 1 oil ISOVG32
Constitute：AF2000+AR2000+AL2000
Model：AC2000/Black/Copper Core
Fluid：Air
Port size：1/4
Filtering grade：40μm or 25μm
Pressure range：Semi-auto and automatic drain:0.15~0.9MPa(20-130Psi) Manualdrain:0.05~0.9MPa(7~130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of drain bowl：15CC
Capacity of oil bowl：25CC
Recommended lubricant：Turbine 1 oil ISOVG32
Constitute：AF2000+AR2000+AL2000
Model：AC1500/Black
Fluid:Air
Port size:1/4
Filtering grade:40μm or 25μm
Pressure range:Semi-auto and automatic drain:0.15~0.9MPa(20-130Psi) Manualdrain:0.05~0.9MPa(7~130Psi)
Max.pressure:1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range:-5~70℃(unfreeze)
Capacity of drain bowl:15CC
Capacity of oil bowl:25CC
Model:AC3000-03/White
Proof pressure:1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm)
Ambient and fluid temperature:5-60℃
Nominal filtration rating:25μm
It is recommended to use oil:Turbine 1 oil ISOVG32
Bowl material: Polycarbonate
Bowl guard:AC2010 (None) AC3010~5010 (Included)
Set pressure range:AC2010-5010:0.05-0.85MPa(0.5-8.5kgf/cm²)
Construction:Overflow type
Model：AC2000-02/White
Proof pressure：1.5MPa(15kgf/cm²)
Max. operation pressure：1.0MPa(10kgf/cm)
Ambient and fluid temperature：5-60℃
Nominal filtration rating：25μm
It is recommended to use oil：Turbine 1 oil ISOVG32
Bowl material：Polycarbonate
Bowl guard：AC2010 (None) AC3010~5010 (Included)
Set pressure range：AC2010-5010:0.05-0.85MPa(0.5-8.5kgf/cm²)
Construction：Overflow type
Model:AC3010-03/Gold
Proof pressure:1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm)
Ambient and fluid temperature:5-60℃
Nominal filtration rating:25μm
It is recommended to use oil:Turbine 1 oil ISOVG32
Bowl material:Polycarbonate
Bowl guard:AC2010 (None) AC3010~5010 (Included)
Set pressure range:AC2010-5010:0.05-0.85MPa(0.5-8.5kgf/cm²)
Construction:Overflow type
Model：AC2010-02/Gold
Proof pressure：1.5MPa(15kgf/cm²)
Max. operation pressure：1.0MPa(10kgf/cm)
Ambient and fluid temperature：5-60℃
Nominal filtration rating：25μm
It is recommended to use oil：Turbine 1 oil ISOVG32
Bowl material： Polycarbonate
Bowl guard：AC2010 (None) AC3010~5010 (Included)
Set pressure range：AC2010-5010:0.05-0.85MPa(0.5-8.5kgf/cm²)
Construction：Overflow type
Model：BFC2000/Grey/Metal
Fluid：Air
Port size：1/4”
Filtering grade：40μm or25μm
Pressure range：Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of drain bowl：60CC
Capacity of oil bowl：90CC
Constitute：BFR2000+BL2000
Model：AFC2000/Grey/Copper
Fluid：Air
Port size：1/4°
Filtering grade：40μm or25μm
Pressure range：Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of drain bowl：15CC
Capacity of oil bowl：25CC
Recommended lubricant：Turbine 1 oil ISOVG32
Constitute：AFR2000＋AL2000
Model：BFC2000/Black/Plastic
Fluid：Air
Port size：1/4”
Filtering grade：40μm or25μm
Pressure range：Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of drain bowl：60CC
Capacity of oil bowl：90CC
Model:AFC2000/Black/Fiber
Fluid:Air
Port size:1/4°
Pressure range:Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi)
Max.pressure:1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range:-5~70℃(unfreeze)
Capacity of drain bowl:15CC
Capacity of oil bowl:25CC
Model:AFC2000/Black/Copper
Fluid:Air
Port size:1/4°
Pressure range:Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi)
Max.pressure:1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range:-5~70℃(unfreeze)
Capacity of drain bowl:15CC
Capacity of oil bowl:25CC
Model:AFC1500/Black/Copper
Fluid:Air
Port size:1/4°
Filtering grade:40μm or25μm
Pressure range:Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi)
Max.pressure:1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range:-5~70℃(unfreeze)
Capacity of drain bowl:15CC
Capacity of oil bowl:25CC
Model：SFC200/300/400
Port size：1/4”/3/8”/1/2″
Working medium:Air
Proof pressure:1.5Mpa(15.3kgf/cm²)
Max.adjustable pressure:1.0Mpa(10.2kgf/cm’)
Using temperature range:5-60℃
Fiter spool precision:40μm
Body material:Aluminum alloy
Cup material:PC
Cup hood:Plastic
Model：AC3010-03/White
Proof pressure：1.5MPa(15kgf/cm²)
Max. operation pressure：1.0MPa(10kgf/cm)
Ambient and fluid temperature：5-60℃
It is recommended to use oil：Turbine 1 oil ISOVG32
Bowl material： Polycarbonate
Bowl guard：AC2010 (None) AC3010~5010 (Included)
Set pressure range：AC2010-5010:0.05-0.85MPa(0.5-8.5kgf/cm²)
Construction：Overflow type
Model：AC2010-02/White
Proof pressure：1.5MPa(15kgf/cm²)
Max. operation pressure：1.0MPa(10kgf/cm)
Ambient and fluid temperature：5-60℃
Nominal filtration rating：25μm
It is recommended to use oil：Turbine 1 oil ISOVG32
Bowl material：Polycarbonate
Bowl guard：AC2010 (None) AC3010~5010 (Included)
Set pressure range：AC2010-5010:0.05-0.85MPa(0.5-8.5kgf/cm²)
Construction：Overflow type
Model:AF2000-02/Gold
Proof pressure:1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm²)
Ambient and fluid temperature:5~60℃
Nominal filtration rating:25μm
Bowl material:Polycarbonate
Bowl guard: AF2000 (None) AF3000-5000 (Included)
Model:AF2000/Grey
Fluid：Air
Port size：1/4″
Filtering grade：40μm or 25μm
Pressure range：Semi-auto and automatic drain:0.15~1.0MPa(20~145Psi)Manual drain:0~1.0MPa(0~145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Model：BF2000/Plastic Cover
Fluid：Air
Port size：1/4”
Filtering grade：40μm or 25μm
Pressure range：Semi-auto and automatic drain:0.15~1.0MPa(20~145Psi)Manual drain:0~1.0MPa(0~145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of drain bowl：60CC
Model:AF2000/Black
Fluid: Air
Port size: 1/4″
Filtering grade: 40μm or 25μm
Pressure range: Semi-auto and automatic drain:0.15~1.0MPa(20~145Psi)Manual drain:0~1.0MPa(0~145Psi)
Proof pressure: 1.5MPa(215Psi)
Temperature range:-5~70℃(unfreeze)
Capacity of drain bowl:15CC
Model：AF3000-03 / White
Proof pressure：1.5MPa(15kgf/cm²)
Max. operation pressure：1.0MPa(10kgf/cm²)
Ambient and fluid temperature：5~60℃
Nominal filtration rating：25μm
Bowl material：Polycarbonate
Bowl guard：AF2000 (None) AF3000-5000 (Included)
Model:AF2000-02/White
Proof pressure：1.5MPa(15kgf/cm²)
Max. operation pressure：1.0MPa(10kgf/cm²)
Ambient and fluid temperature：5~60℃
Nominal filtration rating：25μm
Bowl material：Polycarbonate
Bowl guard：AF2000 (None) AF3000-5000 (Included)
Model:AR2000-02 / Gold
Proof pressure:1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm²)
Set pressure range:AR2000-5000:0.05~0.85MPa(0.5~8.5kgf/cm²)
Ambient and fluid temperature: 5~60℃
Construction:Relieving type
Model：BR2000 / Grey
Fluid：Air
Port size：1/4”
Pressure range：0.05~0.9MPa(7~130Psi)
Max.pressure： 1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-20~70’℃
Model：AR2000 / Grey
Fluid： Air
Port size： 1/4”
Pressure range： 0.05~0.9MPa(7~130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-20~70’℃
Model：BR2000/Black
Fluid：Air
size：1/4”
Pressure range：0.05~0.9MPa(7~130Psi)
Max.pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-20~70’℃
Model:AR1500
Fluid: Air
Port size:1/8°
Pressure range: 0.05~0.9MPa(7~130Psi)
Max.pressure: 1.0MPa(145Psi)
Proof pressure: 1.5MPa(215Psi)
Temperature range:-20~70’℃
Model:AR2000/White
Fluid:Air
Port size: 1/4”
Pressure range:0.05~0.9MPa(7~130Psi)
Max.pressure:1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range: -20~70’℃
Weight:200g
Model:AR2000-02/White
Proof pressure:1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm²)
Set pressure range:AR2000-5000:0.05~0.85MPa(0.5~8.5kgf/cm²)
Ambient and fluid temperature: 5~60℃
Construction:Relieving type
Model：AL3000-03 / Golden
Proof pressure: 1.5MPa(15kgf/cm²)
Max. operation pressure: 1.0MPa(10kgf/cm)
Ambient and fluid temperature: 5-60℃
It is recommended to use oil:Turbine 1 oil ISOVG32
Bowl material: Polycarbonate
Bowl guard:AL2000 (None) AL3000-5000 (Included)
Model:AL2000-02/Gold
Proof pressure: 1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm)
Ambient and fluid temperature:5-60℃
It is recommended to use oil: Turbine 1 oil ISOVG32
Bowl material: Polycarbonate
Bowl guard:AL2000 (None) AL3000-5000 (Included)
Model：AL2000 / Grey
Fluid：Air
Port size：1/4”
Pressure range：0.05~1.0MPa(7~145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfreeze)
Capacity of oil bowl：25CC
Recommended lubricant：Turbine 1 oil ISOVG32
Model：BL2000
Fluid：Air
Port size：1/4”
Pressure range：0.05~1.0MPa(7~145Psi)
Proof pressure： 1.5MPa(215Psi)
Temperature range： -5~70℃(unfreeze)
Capacity of oil bowl：25CC
Recommended lubricant：Turbine 1 oil ISOVG32
Model: AL2000/ Black
Fluid: Air
Port size: 1/4”
Pressure range: 0.05~1.0MPa(7~145Psi)
Proof pressure: 1.5MPa(215Psi)
Temperature range: -5~70℃(unfreeze)
Capacity of oil bowl: 25CC
Recommended lubricant: Turbine 1 oil ISOVG32
Model:AL3000-03/ White
Proof pressure: 1.5MPa(15kgf/cm²)
Max. operation pressure: 1.0MPa(10kgf/cm)
Ambient and fluid temperature: 5-60℃
It is recommended to use oil: Turbine 1 oil ISOVG32
Bowl material: Polycarbonate
Bowl guard:AL2000 (None) AL3000-5000 (Included)
Model:SL-200/SL-300/SL-400
Port size: 1/4″/ 3/8″ / 1/2″
Working medium: Air
Proof pressure: 1.5Mpa(15.3kgf/cm)
Max.adjustable pressure:1.0Mpa(10.2kgf/cm)
Using temperaturerange: 5~60℃
Suggest lubrication oil:(ISOVG32) Turbine 1 oil
Body material:Aluminum alloy
Cup material: PC
Model: AL2000-02
Proof pressure:1.5MPa(15kgf/cm²)
Max. operation pressure: 1.0MPa(10kgf/cm)
Ambient and fluid temperature: 5-60℃
It is recommended to use oil:Turbine 1 oil ISOVG32
Bowl material: Polycarbonate
Bowl guard:AL2000 (None) AL3000-5000 (Included)
Model:AW3000-03/Gold
Proof pressure: 1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm²)
Ambient and fluid temperature:5~60℃
Filter accuracy:25μm
Bowl material:Polycarbonate
Bowl guard: A W 2 0 0 0 (None) A W 3 0 0 0 ~ 5 0 0 0 (Included)
Set pressure range: Set pressure range
Construction:Overflow type
Model：AW2000-02 / Gold
Proof pressure：1.5MPa(15kgf/cm²)
Max. operation pressure：1.0MPa(10kgf/cm²)
Ambient and fluid temperature： 5~60℃
Filter accuracy：25μm
Bowl material：Polycarbonate
Bowl guard：A W 2 0 0 0 (None) A W 3 0 0 0 ~ 5 0 0 0 (Included)
Model：BFR-2000
Fluid：Air
Port size：1/4″
Filtering grade：40μm or 25μm
Pressure range： Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi)
Manual drain:0.05~0.9MPa(7~130Psi)
Max. pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfrooze)
Model:AFR2000
Fluid:Air
Port size: 1/4″
Filtering grade: 40μm or 25μm
Pressure range:Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi)
Manual drain:0.05~0.9MPa(7~130Psi)
Max. pressure: 1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range:-5~70℃(unfrooze)
Model:BFR2000 / Black / Plastic Cover
Fluid:Air
Port size: 1/4″
Filtering grade: 40μm or 25μm
Pressure range: Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi)
Manual drain:0.05~0.9MPa(7~130Psi)
Max. pressure:1.0MPa(145Psi)
Proof pressure: 1.5MPa(215Psi)
Temperature range: -5~70℃(unfrooze)
Model: AFR2000 / Fibers Core / Black
Fluid: Air
Port size: 1/4″
Filtering grade: 40μm or 25μm
Pressure range: Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi)
Max. pressure: 1.0MPa(145Psi)
Proof pressure:1.5MPa(215Psi)
Temperature range: -5~70℃(unfrooze)
Model：AW2000-02/White
Proof pressure:1.5MPa(15kgf/cm²)
Max. operation pressure:1.0MPa(10kgf/cm²)
Ambient and fluid temperature:5~60℃
Filter accuracy:25μm
Bowl material:Polycarbonate
Bowl guard:A W 2 0 0 0 (None) A W 3 0 0 0 ~ 5 0 0 0 (Included)
Set pressure range:AW2000~5000:0.05~0.85MPa(0.5~8.5kgf/cm²)
Construction:Overflow type
Model：AFR2000 / Copper Core /Black
Fluid：Air
Port size：1/8″
Filtering grade：40μm or 25μm
Pressure range：Semi-auto and automatic drain:0.15~0.9MPa(20~130Psi)
Manual drain:0.05~0.9MPa(7~130Psi)
Max. pressure：1.0MPa(145Psi)
Proof pressure：1.5MPa(215Psi)
Temperature range：-5~70℃(unfrooze)
Model:SFR-200/SFR-300/SFR-400
Port size: 1/4″ / 3/8″ / 1/2″
Working medium: Air
Proof pressure: 1.5Mpa{15.3kgf/cm²}
Max. adjustable pressure: 1.0Mpa(10.2kgf/ cm’}
Using temperature range: 5-60℃
Fiter spool precision: 40μm
Body material: Aluminum alloy
Cup material: PC
Model：SC
Bore size(mm)：32/40/50/63/80/100/125/160/200/250
Acting type：Double acting
Fluid：Air(Lo be filered by 40μm filtor element)
Oporaling prossure：0.15~1.0MPa(22~145pBi)(1.5~10.0bar)
Proof prossuro：1.5MPa(215psl)(15bar)
Tomporaluro ℃：-20~70
Model：DSNU
Bore(mm）：8/10/12/16/20/25/32/40/50/60
Design:Piston/piston rod/ylinder barrel
Position sensing:Via proximity svitch
Type of mounting:Direct mounting (variant MHonly)/With accessories
Mounting position:Any
Model：CDG1B
Bore size [mm]:20/25/32/40/50/63/80/100
Action：Double acting,Single rod
Lubricant：Not required(Non-lube)
Fluid：Air
Proof pressure：1.5 MPa
Maximum operating pressure：1.0 MPa
Minimum operating pressure：0.05 MPa
Ambient and fluid temperatures：Without auto switch:-10℃ to 70℃(No freezing)
With auto switch:-10℃ to 60℃
Stroke length tolerance⁹1：Up to 1000 *6mm,Up to 1500+1mm
Cushion：Rubber bumper,Air cushion
Model：MF
Bore sizo(mm):20/25/32/40
Acling type：Double acting、Double acting with cushion、Single acting
Fluid：Air(lo be fillered by 40μm filler element)
Operating pressure：Double acling：0.15~1.0MPa(22~145psi)(1.5~10.0bar)
Singlo acling：0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Proof prosburn：1.5MPa(215pBi)(15bar)
Temperature ℃：-20-70
Model:MBL
Bore size(mm):20/25/32/40/50/63
Acting type:MSBL/MTBL:Single acting
MBL/MBLD/MBLJ:Double acting
MBLCMBLCDMBLCJ:Double acling with cushion
Fluid:Air(Lo be filtered by 40μm filter element)
Double acting:0.15-1.0MPa(22-145psi)(1.5-10.0bar)
Single acling:0.2-1.0MPa(28-145psi)(2.0-10.0bar)
Proof pressure:1.5MPa(215psi)(15bar)
Temperature ℃:-20-70
Model：MARU
Bore size(mm)：16/20/25/32/40/50/63
Fluid：Air(to be filtered by 40pm filter element)
Operating pressure：Double acting：0.15~1.0MPa(22~145psi)(1.5~10.0bar)
Single acling:0.2-1.0MPa(28-145psi)(2.0-10.0bar)
Proof pressure:1.5MPa(215psi)(15bar)
Temperature ℃:-20-70
Model:Mal
Bore size(mm)：20/25/32/40
Fluid：Air(to be filtered by 40μmfilter element)
Operating pressure：Double acting：0.15~1.0MPa(22~145psi)(1.5~10.0bar)
Single acting：0.2-1.0MPa(28-145psi/2.0-10.0bar)
Proof pressure：1.5MPa(215psiY15bar)
Temperature ℃：-20~70
Model:MAC
Bore size(mm):16/20/2532/40/50/63
Fluid:Air(to be filtered by 40μm filter element)
Operating pressure:Double acting:0.15~1.0MPa(22~145psi)(1.5~10.0bar)
Single acting:0.2-1.0MPa(28-145psi)(2.0-10.0bar)
Proof pressure:1.5MPa(215psi)(15bar)
Temperature ℃:-20-70
Model：MA
Bore size(mm)：16、20、25、32、40、50、63
Acting type：Double acting
Fluid：Air(to be filtered by 40pm filter element)
Operating pressure：Double acting：0.15~1.0MPa(22~145psi)(1.5~10.0bar)
Single acting：0.2-1.0MPa(28-145psi)(2.0-10.0bar)
Proof pressure：1.5MPa(215psi)(15bar)
Temperature ℃：-20-70
Model：STMB
Actoin：Double Acting
Fluid：Clean Air
Applicable：0.1~0.9MPa{1~9.1kgf/cm²}
Proof Press：1.3MPa{13.5kgf/cm²}
Environment Temp：0~70℃
Rang Of Speed Applied：50~200 mm/s
Adjust Travel：-10~0 mm
Bore size(mm):6/10/16/20
Standard stroke(mm):5,10,15,20,25,30,40,50,60
Fluid:Air
Action:Double acing
Maximum operating pressure:0.7 MPa
Proof pressure:1.05 MPa
Ambient and fluid temperature:Without auto swich:-10 to 70℃(No freezing)
With auto switch:-10 to 60℃(No freezing)
Piston speed:50 to 500 mms
Lubrication:Non-lube
Cushion:Rubber bumper on both ends
Model:MGPM
Bearing type:Slide beaning
Bore size(mm):20,25,32,40,50,63,80,100
Cushion:MGPM□□R:Rubber bumpe
MGPM□□V:Without cushion
Auto switch mounting:Direct mounting
Minimum operating pressure:0.13 MPa
Model:CDU
Bore size(mm):6/10/16/20/25/32
Fuid:Air
Proof pressure:1.05 MPa
Maximum operating pressure:0.7 MPa
Amblent and fluid temperature:Wihout auto switch:-10 to 70℃(No freezng)
With auto switch:-10 to 60℃(No treezng)
Lubrication:Non-Ltbe
Piston speed:50 to 500 mms
Cushion:Rubber bumper
Rod end thread:Male thread
Model:CDQ2B
Bore size [mm]:12/16/20/25/32/40/50/63/80/100mm
Action:Air
Proof pressure:1.5 MPa
Maximum operating pressure:1.0 MPa
Ambient and fluid temperatures:Without auto switch magnet-10 to 70℃ (No freezing)
With auto switch magnet:-10 to 60℃
Lubrication:Not required(Non-lube)
Piston speed:50 to 500 mm/s
Cushion:Without cushion or With rubber bumper
Stroke length tolerance:+1.0 mm*10
Model:SDA
Bore size(mm):12,16,20,25,32,40,50,63,80,100
Acting type:Double acting/Single acting_Push type、Single acting_Pull type
Operating pressure:Double acting:0.15~1.0MPa(22~145psi)(1.5~10.0bar)
:Single acting:0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Proof pressure:1.5MPa(215psi)(15bar)
Temperature ℃:-20~70
*We respect your confidentiality and all information are protected.
*We respect your confidentiality and all information are protected.
*We respect your confidentiality and all information are protected.
Copyright © 2026, HEBAI All rights Reserved.
*We respect your confidentiality and all information are protected.
English
Spanish
French
Russian
